A serious hard case, giant ants from Australia





SSHOOSH - You can't beat nature. Animals can remain virtually silent, even breathing can be controlled so that the normal rush of air into the lungs is noise free. You cannot do this after exercise such as running, when you will be panting or gasping for breath depending on how much you exerted yourself. That kind of breathing is very noisy, but leg and arm joints and muscle contractions are virtually silent.









CHRISTMAS GIANT ROBOT ANT PROJECT - BEING QUIET



You can hear most robots coming a mile away. It is difficult to insulate a mechanism audibly without a sound proofing or containing jacket. By way of example, cars use high density foams and bitumen based layers bonded to the structural steel panels to absorb vibrations and stop drumming. Engine bays typically have foil protected foam under the hood. Carpets help with noise reduction, but heavy rubber matting is more effective.



The best way to contain sound is to build a box or cabinet to contain it. Even better, incorporate the sound proofing in at the design stage, with as many sound containing features as you can think of.



We have a problem because we are using anywhere from 2 to 6 electric motors and they are noisy whining machines at the best of times. Brushless machines are quieter than brushed motors, but gearing has to be in there somewhere and we are using chains, even though rubber belts are less noisy - they are more expensive and less efficient.



One way of stopping all of the noise being transmitted through the frame is to use rubber mountings for the motors. We are using sandwich construction for the driven cogs, going from steel to wood and back to steel. The bearing carriers can also be rubber mounted, so keeping the drive-train (transmission) insulated from the chassis.



Fortunately, this robot has bodywork to replicate the exoskeleton appearance of the insect that inspired the project. The bodywork can be made to form an airtight cabinet with rubber bellows at the breakout points. Unlike DARPA's robot mule, our robot is only designed to carry a small person. But the noise from the RoboDog is unreal - a non-starter in our opinion. Or at least, they should have sorted a noise study first off. The Cheetah and other robots commissioned by the US military are also way too noisy for combat use.

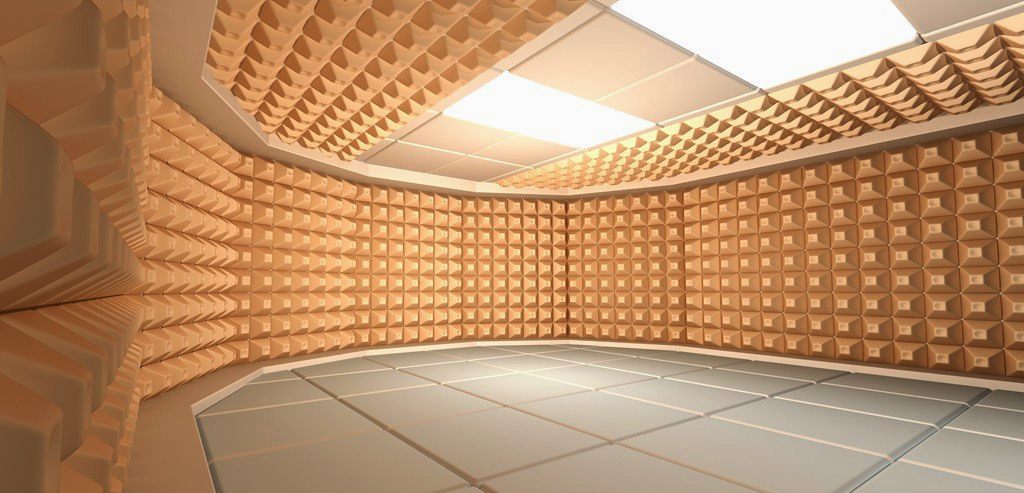

FUTURISTIC ROOM - Soundproofing is any means of reducing the sound pressure with respect to a specified sound source and receptor. There are several basic approaches to reducing sound: increasing the distance between source and receiver, using noise barriers to reflect or absorb the energy of the sound waves, using damping structures such as sound baffles, or using active antinoise sound generators.

Two distinct soundproofing problems may need to be considered when designing acoustic treatments - to improve the sound within a room (See anechoic chamber), and reduce sound leakage to/from adjacent rooms or outdoors. Acoustic quieting, noise mitigation, and noise control can be used to limit unwanted noise. Soundproofing can suppress unwanted indirect sound waves such as reflections that cause echoes and resonance's that cause reverberation. Soundproofing can reduce the transmission of unwanted direct sound waves from the source to an involuntary listener through the use of distance and intervening objects in the sound path.

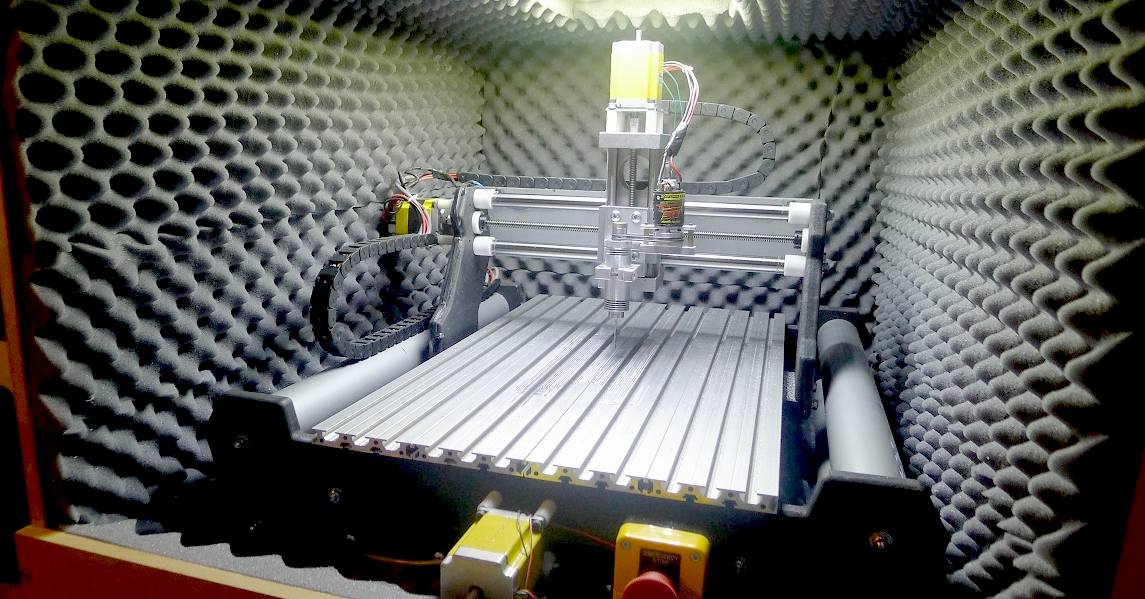

WORKSHOP SILENCE - This cabinet encloses the noisy machinery within, isolating it from the workshop, also using foam to help reduce sound transmission. Automotive soundproofing works in similar fashion, aiming to decrease or eliminate the effects of exterior noise, primarily engine, exhaust and tire noise. The automotive environment limits the thickness of materials that can be used, but combinations of dampers, barriers, and absorbers are common. There are many complex noises created within vehicles which change with the driving environment and speed at which the vehicle travels - ignoring noise from aerodynamic drag for now. Significant noise reductions of up to 8 dB can be achieved by installing a combination of all types of materials.

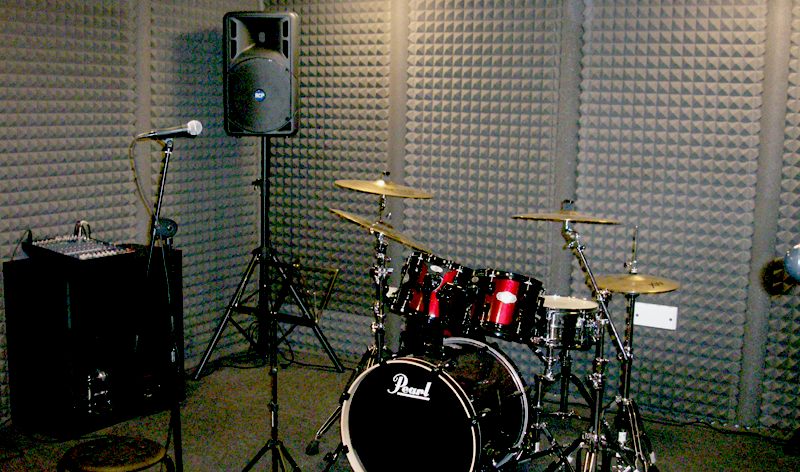

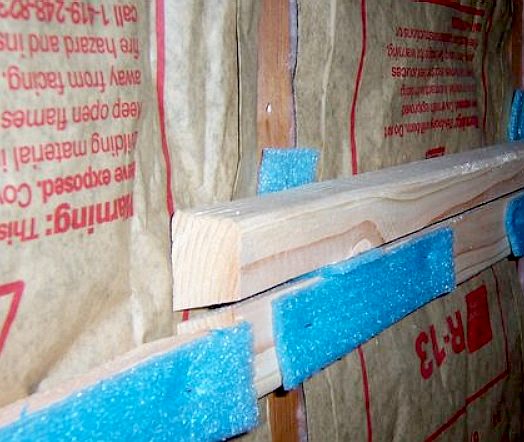

DIY STUDIO - Soundproofing a wall involves the principles of mass and isolation. A heavy wall will soundproof better than a lighter wall of the same construction. But isolation will let you achieve the same results with a lighter wall.

A traditional wall involves panels (drywall, siding, stucco) connected to a frame, with drywall attached to the inside. There is usually fiberglass insulation inside the wall. It can typically block about 30dB of sound if constructed tightly. The way it works is mainly through the mass of the wall (drywall + frame) with some absorption by the insulation (effectively "turning down the volume") in the little "room" between the panels.

You can make a better wall by finding ways to isolate one panel from the other. In the staggered stud method, the vertical studs are staggered in depth so that the front and back panels are screwed into different sets of studs. However, they are still attached to the same top and base board of the frame, so some sound will travel straight through.









DECEMBER 29 2015 - ARS TECHNICA - Marines’ LS3 robotic mule is too loud for real-world combat


Five years and $42 million later, the robodog project is shelved.

The kickable "robotic mule," also known as AlphaDog or LS3, created by Alphabet-owned Boston Dynamics under a contract with DARPA, has proved too loud to fight alongside the US Marines. Following an extended test period during the "Rim of the Pacific" military exercise last year, the project has been suspended.

The Legged Squad Support System (LS3) was created to carry heavy equipment for the Marines during marches, bearing a load of up to 400 pounds (180kg). This would have provided much-needed relief for the fighters: the average soldier is supposed to carry no more than 72 pounds (32kg) when marching and 48 pounds (22kg) when fighting, but paratroopers fighting in Iraq in 2003 carried up to 101 pounds (46kg). In total, about $42 million (£28 million) was awarded to Boston Dynamics to develop the robodog.

Unfortunately for those over-laden soldiers, however, the military exercise clearly showed that LS3 in its current state is not suitable for real-life use by the US Marine Corps, Military.com reports.

"As Marines were using it, there was the challenge of seeing the potential possibility because of the limitations of the robot itself," said Kyle Olson, a spokesman for the Marine Corps Warfighting Lab. "They took it as it was: a loud robot that's going to give away their position."

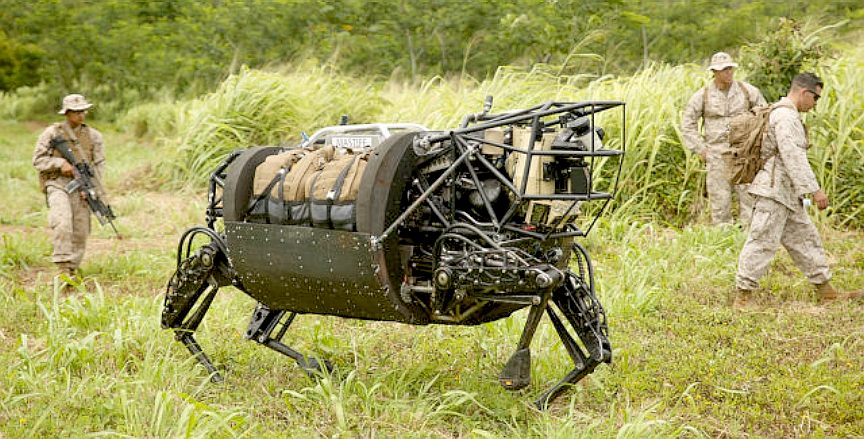

BATTLE ROAR - The mule, or AlphaDog is ridiculously noisy in operation, so much so that a company of soldier's will have their position compromised. The enemy will know where they are and the soldiers cannot hear the enemy because of the robot shadowing their progress.









The robotic mule is fitted with a petrol-powered engine that produces significant noise when working; some have likened it to the sound of an angry swarm of bees. Under the same contract with DARPA and the Warfighting Lab, Boston Dynamics built a quieter, electrically powered and hydraulically actuated robot known as Spot. However, the mule's little brother could only carry about 40 pounds (18kg), which is clearly not enough for the marines.

"I see Spot right now as more of a ground reconnaissance asset," captain James Pineiro, the Ground Combat Element branch head for the Warfighting Lab, told Military.com. "The problem is, Spot in its current configuration doesn't have the autonomy to do that. It has the ability to walk in its environment, but it's completely controller-driven."

In addition to that, it is unclear how both robots could be repaired if they break down on the move.

For the time being, both the LS3 and Spot projects have been put on hold. The developers don't plan any future experiments or upgrades unless the Marines give the Warfighting Lab a new contract. Instead of that, the lab is experimenting with unmanned vehicles, including drones for reconnaissance and medical re-supply purposes.

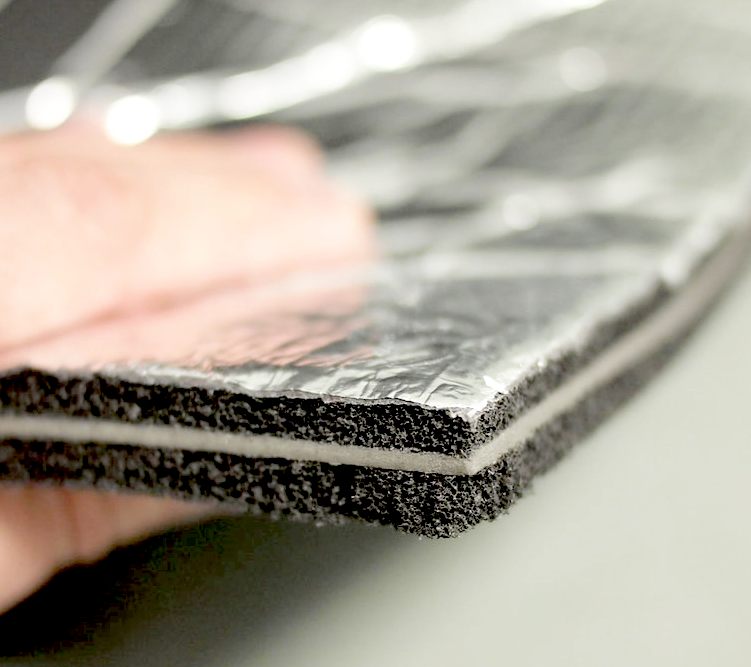

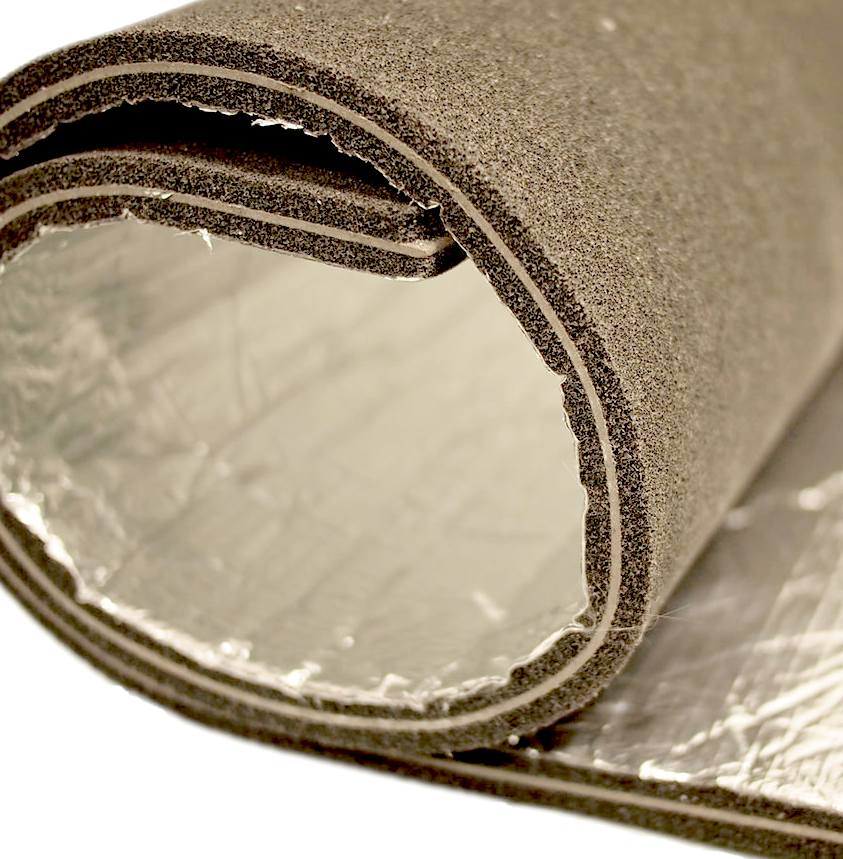

SOUND ABSORPTION - As an example of a sound stopper, Dodo MLV offers 4 layers of sound proofing in one product. The makers claim this mat will absorb noise from the engine, tyres, exhaust and general road roar whilst helping to block low frequencies. The 4 Layer construction consists of:

2 x Layers of high grade polyurethane open cell Sound absorbing foam
1 x Layer of decoupled sound blocking Mass Loaded Vinyl (MVL) barrier
1 x Aluminium foil constraining layer



This Dodo Sound product is been designed to provide maximum noise reduction for a given thickness, achieved by combining 2 high grade noise absorbers with 1 very effective high mass loaded barrier layer plus an aluminium foil constraining layer.

The effectiveness of the mass loaded vinyl is greatly increased by the sandwich design decoupling it from a vehicle's bodywork.

The material combination and the thickness of layers are chosen to optimize the acoustic performance. Lamination is achieved using high performance reactive adhesives.

The aluminium foil acts as a heat shield constraining layer for use in demanding areas of the vehicle.
Temperature Range = -30°C > +100°C. The sheet size = 900 x 600mm (0.54sq.m / 5.8 sq. feet) x 15mm thickness with a mass per sheet of 3.2kg.









Dinobot, giant prehistoric ant robot steel frame





FRAME ARTICULATION - Wherever you have a joint or mechanical movement, there will be noise. Good design can eliminate a lot of noise, but electric motors and gears whine. Even bearings rumble. It is good practice to rubber mount motors and servos, but of course that adds weight and cost. Please note that this frame is Design Copyright and that this photograph is Copyright © Jameson Hunter Ltd 31 January 2016. All rights reserved. You will need permission from Jameson Hunter to be able to reproduce it.





















A prehistoric giant ant hatches from a frozen egg to create havoc





Movie idea, lurking beneath the Antarctic ice is a discovery that scientists will die for. This story is now the subject of a low budget trailer to be produced mostly in the UK. The promoters are looking for backers. The UK will contribute 20% toward production costs. Roughly 60% of a low budget film may be pre-sold as distribution rights, leaving 20% finance to source. The deal is that investors recover 120% on their project stake within 12 months of shooting, with an income stream thereafter from networks and merchandising. Producers and directors please take note that there is a significant audience for well made movies of this genre. Look at what happened when they remade Godzilla.









Artwork for Sectasaur, a story about a giant insect discovered as the Antarctic thaws





A Sectasaur™ (thawed) - now on permanent display at Herstmonceux Museum, in Sussex, England.
