MOTIVATION - Almost every movement on an animatronic requires a separate motor and gearbox. Electricity and then magnetism were two of the most important discoveries of man. We entered the modern age of electricity in the 1900s with the mass introduction of electric lighting and municipal generating utilities. We take all of that for granted but we should not ignore our roots. Dino's head uses three dc brushed motors to move up and down and left to right, and to open and close those magnificent mandibles.







Christmas has come and gone, but there is some January snow to keep us in the right mood to complete Dino as the giant ant animatronic is now known, and this brings us onto one of the most important subjects concerning any medium sized robot.


Almost all robots are powered by electric motors. There are some that are so large that they need internal combustion engines, such as the Mantis and Stompy or the MegaBots, but fascinating as they are, we are not concerned with those in this article.

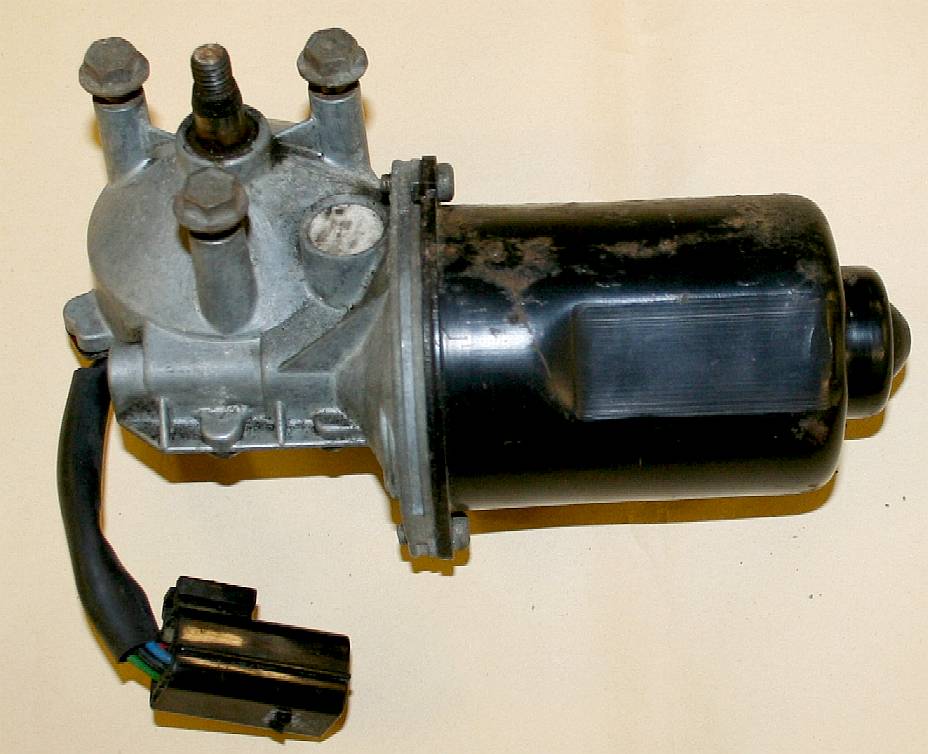

A Delco automotive wiper motor



MOTORS - This is a Delco wiper motor as used for a number of road vehicles. This unit can deliver 180 watts or a 1/4 hp - very inefficiently with worm drive. We will be testing the transmission on the giant ant under no-load conditions - so for static tests two of these units will be fine. In theory they could drive a 140lb (63kg) ant at 2 feet per second, or roughly 1.25 mph. Not a lot of good for war gaming. In practice we'd be looking at one mile an hour after losses. A slow walking speed for a human is 3.1 mph. The power to weight ratio with these motors is: 280 lbs per horsepower. Not good. Stompy is much better.







The pioneering greats in the hunt for clean motive power are Allessandro Volta (battery 1800), Michael Faraday (electromagnetic rotation 1821). With the invention of the battery, the generation of a magnetic field from electric current (Hans Christian Oersted, 1820) and the electromagnet (William Sturgeon, 1825) the foundation for building electric motors was laid.

The first rotating device driven by electromagnetism was built by the Englishman Peter Barlow in 1822 (Barlow's Wheel).

The Prussian, Moritz Jacobi, created the first real rotating electric motor in May 1834, one that actually developed a useable mechanical output power. His motor set a world record which was improved four years later in September 1838 by Jacobi himself. His second motor was powerful enough to drive a boat with 14 people across a wide river.

In 1835 the two Dutchmen Sibrandus Stratingh and Christopher Becker built an electric motor that powered a small model car. This is the first known practical application of an electric motor. In February 1837 the first patent for an electric motor was granted to the US American Thomas Davenport.

However, all the early developments by Jacobi, Stratingh, Davenport and others eventually did not lead to the electric motors we know today.

The DC motor was created from the development of power generators (dynamometers). The foundations were laid by William Ritchie and Hippolyte Pixii in 1832 with the invention of the commutator and, most importantly, by Werner Siemens in 1856 with the Double-T-anchor and by his chief engineer, Friedrich Hefner-Alteneck, in 1872 with the drum armature.


DC motors have a dominant market position today in the low power (below 1 kW) and low voltage (below 60 V) range, though this is creeping up. The years 1885 until 1889 saw the invention of the three-phase electric power system which is the basis for modern electrical power transmission and advanced electric motors.

Today, the three-phase synchronous motor is used mostly in highly dynamic applications (for example in robots) and in electric cars. It was first developed by Friedrich August Haselwander in 1887.





When looking at how to power your DinoBot, you will be tempted to go for the most powerful setup possible, but this is also the most expensive option. Unless you are going for a world record, you may want to rein back a little and think about endurance and your poor battery pack.


We've got the design down to two main motors for locomotion. You'll need more motors for tricks, but we are not letting on how to do that at the moment. With only two motors and controllers the whole setup is very economical.

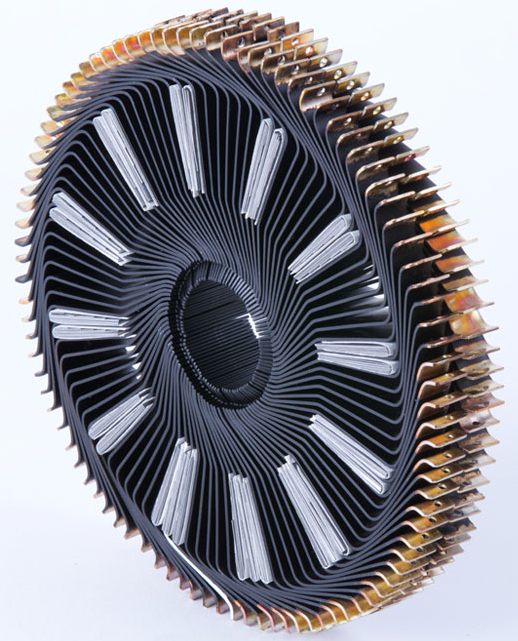

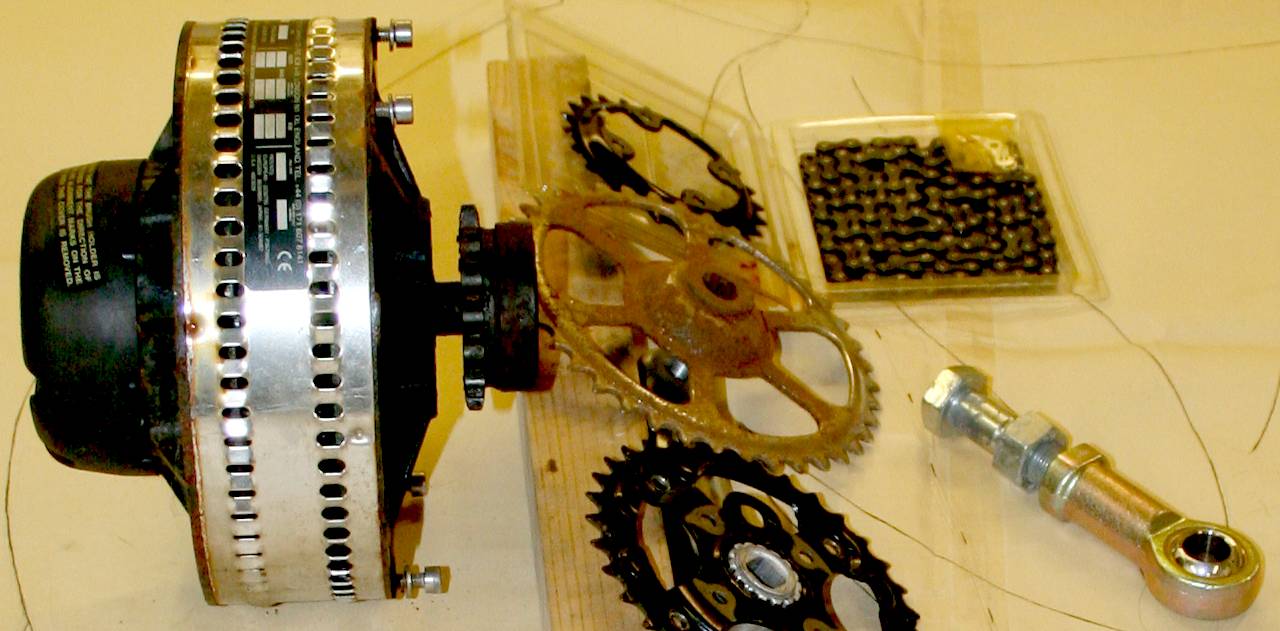

A 10kW Lynch DC pancake motor  The radial armature from a Lynch electric traction motor



LYNCH DC POWER - This is a DC pancake (radial armature) motor from Cedric Lynch - who is a very clever electrical engineer. It is rated at 10kW or 13.4 hp. Cedric does a smaller 3kW unit for robotic applications. A 200lb robot with 13 horsepower could sprint along nicely @ 35 feet per second 'in theory,' or 23 mph, around 16mph in practice. That is more like it. But we won't be doing that just yet. Although we do have two of the 10kW motors on hand, should the mood take us, or any customer. The power to weight ratio is 15lbs per horsepower, or 150 hp/ton, is the way automotive engineers compare performance (bhp/ton). Compare that to Stompy's 44.5lbs/hp. Stompy should be able to achieve 7.5 mph - when it is working 100% efficiently. With hydraulics you lose a lot of power in the transmission, and the mass of those steel legs is just short of JCB technology - so we'll not hold our breath. We might have considered alloy for the legs at least. More hassle welding, but worth it. KISS. CONTACT CEDRIC LYNCH: Tel: +44 (0) 1404 892940 - Fax: +44 (0) 1404 891990 - Lynch Motor Company Ltd, Unit 27 Flightway Business Park, Dunkeswell, Honiton, Devon, EX14 4RJ

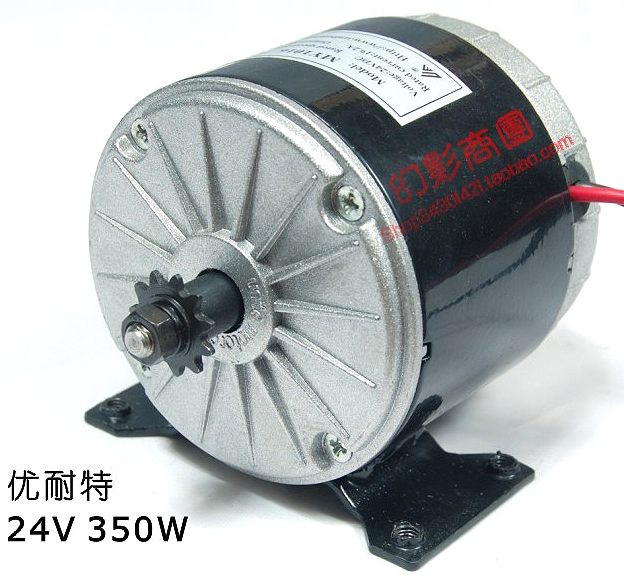

A 350 watt dc motor from China

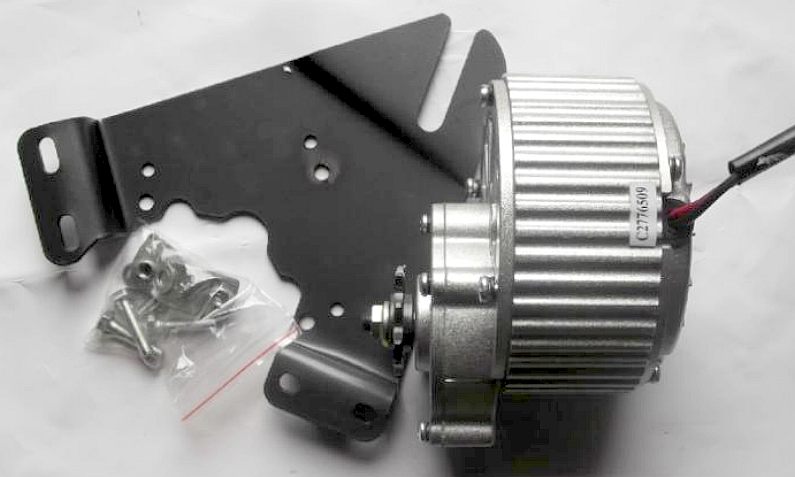

CHEAPER MOTOR OPTIONS - [LEFT] a 350w motor. [RIGHT) a 450w motor with reduction box. Two of the 450w units would give us about 2.5 mph. Six would give us 2.7kW and over 5mph. China produces hundreds of motor combinations at sensible prices. Unfortunately they are brushed motors in the main, so not as efficient as they might be, compared to some of the more modern cordless drill motors and vacuum cleaners (Dyson).

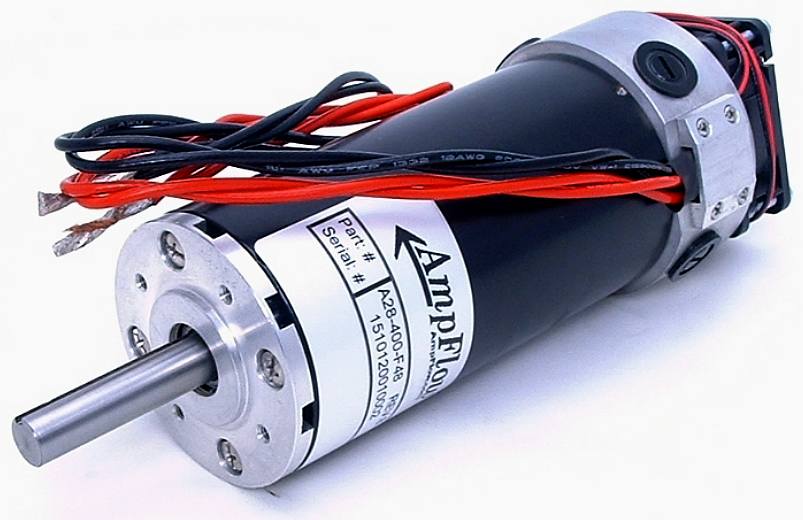

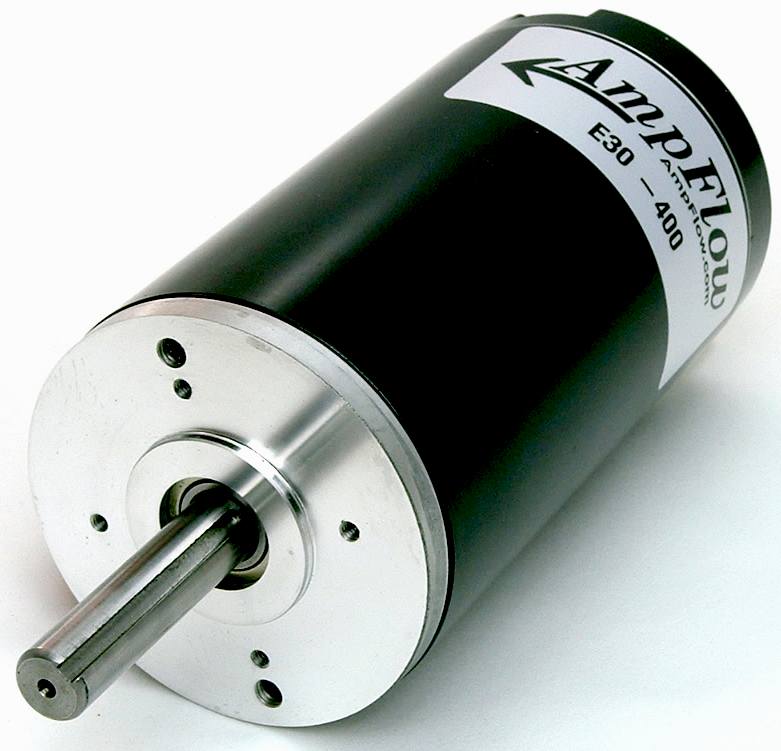

MOTORS - Where you can't beat China for price, the above is a selection of mid-range priced, higher output motors from a US robotic supply site for 12-48 volts. From left to right: 2.1hp ($109),  4.6hp ($339) and 7.8hp ($449) DC brushed motor variants. The four brushed design on the right uses rare earth magnets and has forced air cooling. Speed controllers will be around another $450. Where motor manufacturers usually fall down is in not supplying a range of gears or sprockets to bolt onto their shiny output shafts. Chinese suppliers mostly have this covered.

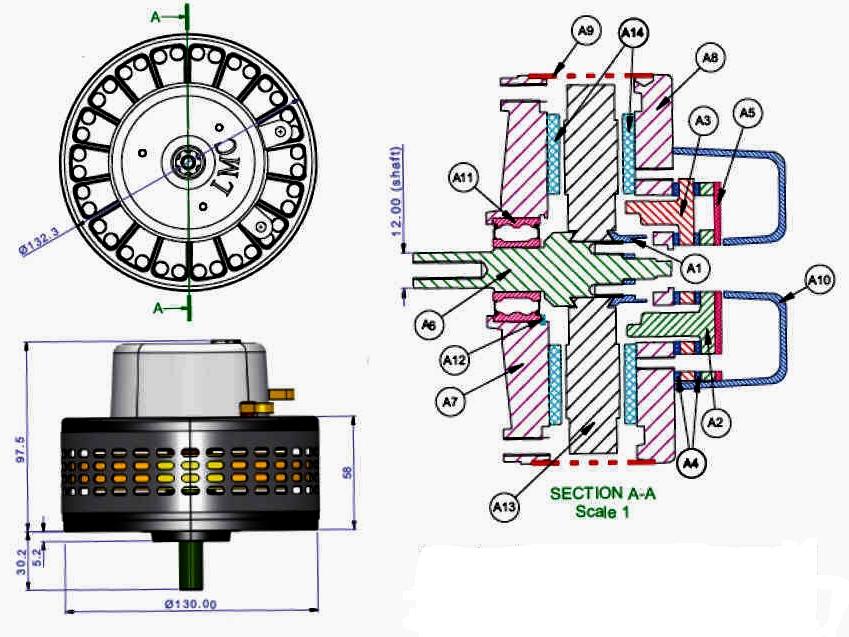

LYNCH LEM 130 - The Lynch motor is a more expensive option, but is a proven light traction motor for robotic applications. If choosing a Lynch motor, go for the 95s and 48 volts to get the best efficiency. That would give you 6kW (8hp) in total and a walking speed of around 10mph.

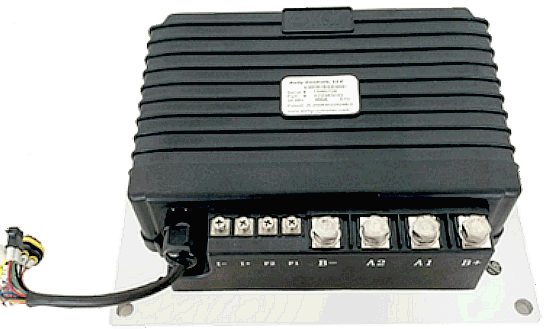

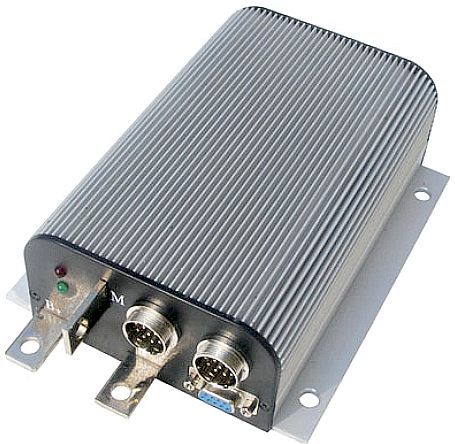

I FEEL THE NEED, THE NEED TO CONTROL MY SPEED - LEFT: KDZ48303GDV KDZ Sep-Ex Motor Speed Controller - Kelly KDZ programmable sep-ex motor controller provides efficient, smooth and quiet controls for electrical vehicles like golf carts, electric motorcycles, fork lifts, as well as electric boats and industry motor speed control. Motor speed controller uses high power MOSFET, fast PWM to achieve efficiency 99% in most cases. Powerful microprocessor brings in comprehensive and precise control to brushed motor controllers. This programmable brushed motor controller also allows users to set parameters, conduct tests, and obtain diagnostic information quickly and easily. $199


MIDDLE: 48V 1500W Electric Scooter Speed Controller - Designed for 48 Volt DC electric scooter and bike motors up to 1500 Watts. Recommended motor size 1000W-1500W. Can be used to power two 500W-750W motors simultaneously. Maximum current 45 Amps. Under Voltage protection 41 Volts. Current limiting feature prevents controller damage due to over-current conditions. Under voltage protection feature prevents over-discharge and extends battery life. Compatible with all standard 3-wire variable speed hall-effect throttles. Item # SPD-481500 $79






500 watt motors, 2kW lithium battery pack and 500w electronic dc speed controllers



MOTORS - Here we see a 48 volt 2kW hour lithium battery pack, two 500 watt motors with gear reduction and two 500w electronic speed controllers.







Multiply Number of
dy-cm g-cm N-cm kg-cm N-m oz-in lb-in lb-ft
1 980.7 105 9.807x105 107 7.062x104 1.130x106 1.356x107 dy-cm To Obtain
1.020x10-3 1 1.020x102 103 1.020x104 72.01 1.152x103 1.383x104 g-cm
10-5 0.9807 1 9.807 100 0.7062 11.3 135.6 N-cm
1.020x10-6 10-3 0.102 1 10.20 7.201x10-2 1.152 13.83 kg-cm
10-7 9.807x10-5 10-2 9.807x10-2 1 7.062x10-3 0.113  1.356  N-m
1.416x10-5 1.389x10-2 1.416  13.89 141.6 1 16 192 oz-in
8.850x10-7 8.681x10-4  8.850x10-2 0.8679 8.85 6.250x10-2 1 12 lb-in
7.375x10-8 7.234x1--5  7.375x10-3 7.234x10-2







Force Conversion


Multiply Number of




To Obtain














To convert kgf to lbf multiply by 2.205. To convert a torque value form oz-in to N-cm multiply by 0.7062
